TappyTag Demo

Features TappyTag Demo

Use this app to test and evaluate the TappyTag handshake feature on the TappyUSB and TappyBLE external NFC reader products.
The TappyTag is a handshake mechanism built into TappyUSB and TappyBLE readers.
The minimum firmware version required on the TappyUSB/TappyBLE is v1.0.To setup your TappyUSB or TappyBLE reader to initiate the TappyTag handshake, you use the Tappy Demo App listed at: https://play.google.com/store/apps/details?id=com.taptrack.bletappyexample&hl=en_CA&gl=USOnce you connect your Tappy reader to the Tappy Demo app (USB or BLE as needed), you select "Send", then "Basic NFC" , and select "TappyTag Handshake".
You will be presented with the option to enter data you want sent over NFC to the phone that is tapping the reader.
If needed enter some test data, and clock SEND.
This will initiate the TappyTag handshake on the reader and you will see the lights on the reader flash.

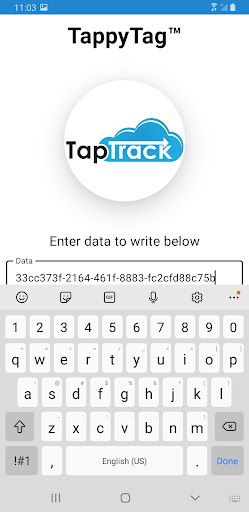

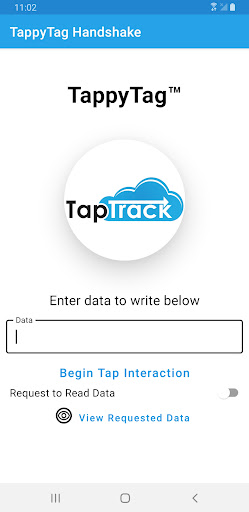

On this app (TappyTag Demo), you can optionally enter data to transmit from the phone to the reader, select "Begin Tap Interaction".
Hold the NFC reading area of the phone to the TappyUSB/BLE tap area, and the data will be exchanged in the handshake.
You are able to view the data that was received by the phone and the reader.
